50kg Magnetic Base Dial Indicator Stand With Fine Adjustment DIN878 Standard 0-10mm Range

Specification

Shipping Limitations:Unlimited
Dimensions:12.21 in. * 8.27 in. * 2.76 in.
Weight:4.63 lbs
Available Ship to:France,Germany

Details

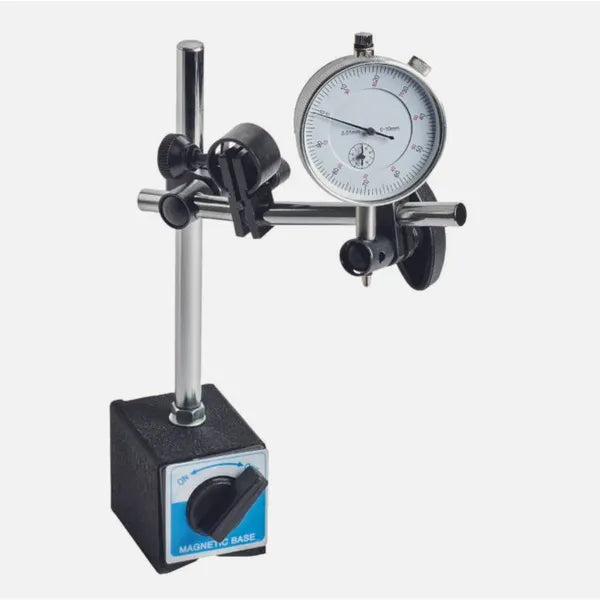

Magnetic Base Dial Indicator Stand





PRODUCT DESCRIPTION

Professional magnetic base dial indicator stand with 50kg holding force, featuring mechanical clamping, switchable magnet, and fine adjustment mechanism. Complies with DIN878 standard. Measures 0-10mm range with 0.01mm resolution. Includes 22-piece contact point set. Suitable for tool presetting on lathes, milling machines, coordinate tables, and inspection of brake discs and wheel hubs. Housed in chrome-plated metal case.




**⚠️ THIS IS AN UNBRANDED OEM QUALITY TOOL - NO MANUFACTURER BRANDING**




KEY FEATURES:

✔ **50KG STRONG HOLDING FORCE**: Magnetic base with 50kg attraction force for stable mounting on ferrous surfaces

✔ **DUAL-SIDE MAGNETIC DESIGN**: Adheres to both ground prismatic base and ground back surface

✔ **SWITCHABLE MAGNET**: Independent on/off switch for quick installation/removal without surface damage

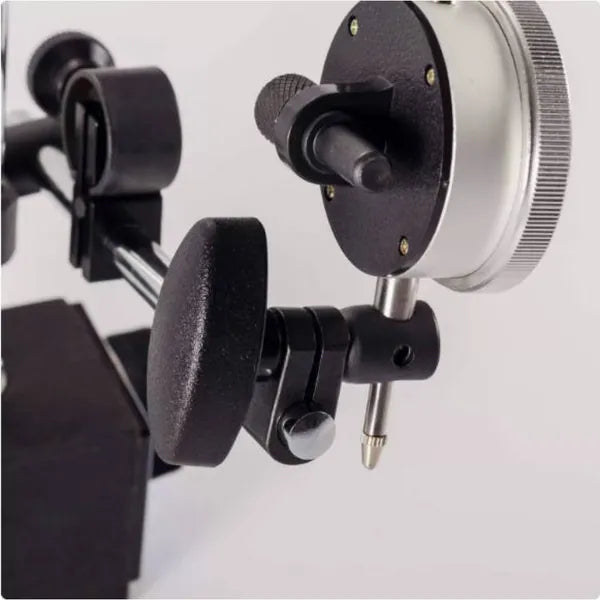

✔ **FINE ADJUSTMENT**: Precision fine-tuning mechanism for accurate measurement positioning




✔ **DIN878 INTERNATIONAL STANDARD**: Manufactured to German DIN878 specification for reliable industrial-grade accuracy

✔ **22 CONTACT POINTS**: Includes 22 different contact point styles for various workpiece shapes

✔ **MULTI-ANGLE ADJUSTABLE**: Base, column, and arm adjustable in multiple directions for flexible setup

✔ **0.01MM HIGH PRECISION**: Dial indicator with 0-10mm range and 0.01mm graduation—meets precision machining requirements




SPECIFICATIONS:

Item Number: 11349

Product Type: Magnetic Base Dial Indicator Stand Set

Magnetic Base:

- Dimensions: 50mm × 63mm × 55mm (W×D×H)

- Holding Force: 50kg

- Function: On/Off switchable

- Mounting Surfaces: Ground prismatic base + ground back

Measuring Column:

- Diameter: Ø12mm

- Length: 160mm




Arm:

- Diameter: Ø10mm

- Length: 150mm

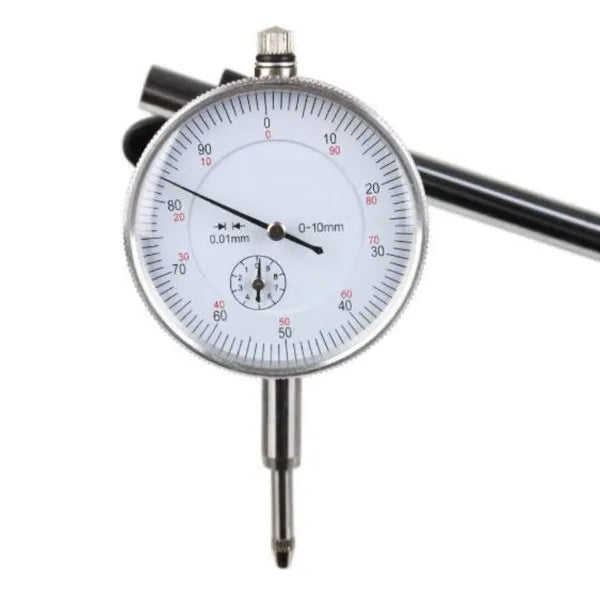

Dial Indicator:

- Range: 0-10mm

- Graduation: 0.01mm

- Case Diameter: 55mm (matte chrome-plated metal)

- Standard: DIN 878

Mounting Hole: Ø8mm (h6 tolerance)

Contact Points: 22-piece set (various styles)

Material: Metal (chrome-plated brass case)

Clamping Method: Mechanical clamping

Fine Adjustment: Yes

Origin: China

EAN: 4005725113499

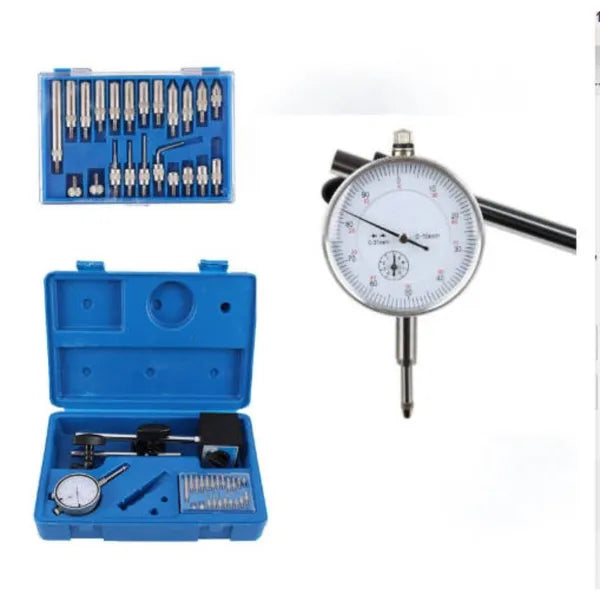

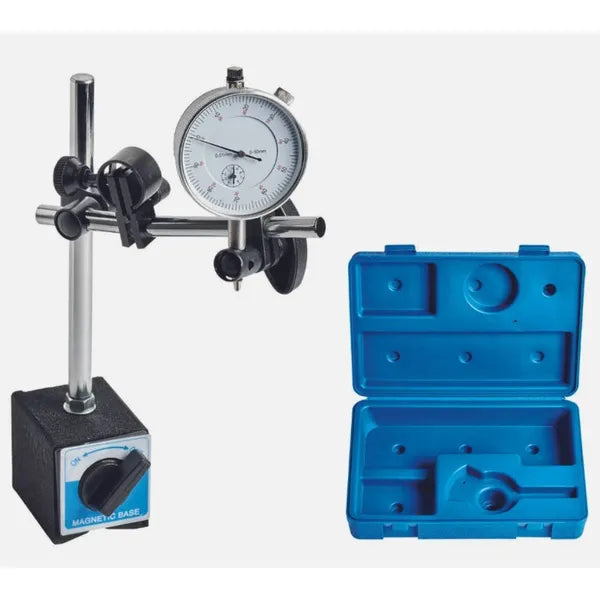

PACKAGE CONTENTS:

- 1 × Magnetic Base (50×63×55mm with on/off switch)

- 1 × Measuring Column (Ø12×160mm)

- 1 × Swivel Arm (Ø10×150mm)

- 1 × Dial
